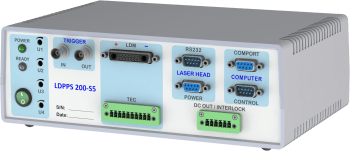

Laser Diode Pump Power Supply "LDPPS"
Quantity
Price
1
$2600
2
$2400
5
$2300
10
$2300
High power Laser Diodes Pulsed Power Supply combines laser diode driver and two independent thermoelectric controllers.
It is designed to provide pulsed and continuous modes of operation for laser diode modules used both independently or as a source of diode pumping for solid-state lasers (DPSSL) in the laboratory, medical and technological laser devices and complexes. The power supply is controlled from a computer via VLC software.
Make an order
It is designed to provide pulsed and continuous modes of operation for laser diode modules used both independently or as a source of diode pumping for solid-state lasers (DPSSL) in the laboratory, medical and technological laser devices and complexes. The power supply is controlled from a computer via VLC software.
Features
- Provides up to 400 A LD current and up to 150 V LD voltage (up to 400 V in OEM version)
- Precisely set LD voltage via VLC software
- Control of the of LD current pulses timing in a wide range of parameters
- Input and output connectors for synchronization with external devices
- 2 independent thermoelectric controllers (TEC1, TEC2) and one additional temperature sensor (Ths3)
- Power supply for additional low-power pilot laser
- Measurement of external photodiode signal
- 3 external interlocks
- Controlled from computer via COM port connector
- Built-in AC/DC converter
Specifications
LDM
Peak LDM current
400 A
Max bias current
50 A
Max LDM voltage
150 (400) V
LDM average power
≤ 600 W
LDM working pulse length
40 ÷ 100 000 µs
Repetition rate
0.1 Hz ÷ 10 kHz
Instability of the current amplitude
≤ 1 %
TEC1 and TEC2 (Peltier elements)
Range of the temperature control
– 50 ÷ 120 °C
Discreteness of the temperature control
± 0.1 °C
Max voltage
22 V
Max current
2 × 8 A
Additional Temperature Interlock Ths3
– 50 ÷ 120 °C
EXTERNAL TRIGGER
Pulse amplitude Utrig_in (Impedance = 1 kΩ)
5 V ± 20 %
Pulse duration
> 2 μs
OUTPUT TRIGGER
Pulse amplitude Utrig_out (Impedance ≥ 1 kΩ )
5 V ± 20 %
Pulse duration
5 μs
Adjustable range of output trigger delay
0 ÷ 3900 µs
BUILT-IN POWER SUPPLY OF PILOT LASER
Voltage
5 V
Max current
200 mA
EXTERNAL PHOTO DETECTOR
Linear range of the photocurrent measurements
0.01 ÷ 160 µA
EXTERNAL POWER SUPPLY
Voltage
100 ÷ 260 VAC
Frequency
47 ÷ 63 Hz
GENERAL
Dimensions
260 × 180 × 92 mm3
Weight
2200 g
Operating temperature
+ 5 ÷ + 45 °C
Documentation
LDPPS Datasheet
1.64 (MB)
Download PDF
Leave a request
Engineering and development of laser system electronics: high-voltage drivers, delay generators, laser diode driver power supplies.
