Pockels Cell Drivers
We provide compact and light weight OEM Pockels Cell Drivers (PCD series) to modulate and deflect ultrafast optical beam for various purposes:
- to control an electro-optical Q-switch in solid-state lasers;
- for laser regenerative amplifiers;
- for pulse picking.
For different applications, our Pockels Cell Drivers provide following output modes:
- trapeziodal HV output pulses with rise time < 2 ns and pulse duration up to 1 μs (PCD-21);
- bell-like HV pulses with 2 ÷ 4 ns duration (PCD-21P);
- rectangular HV pulses with controlled duration in the range of 2 ÷ 600 ns and less than 2 ns rising and falling edges (PCD-41 series).

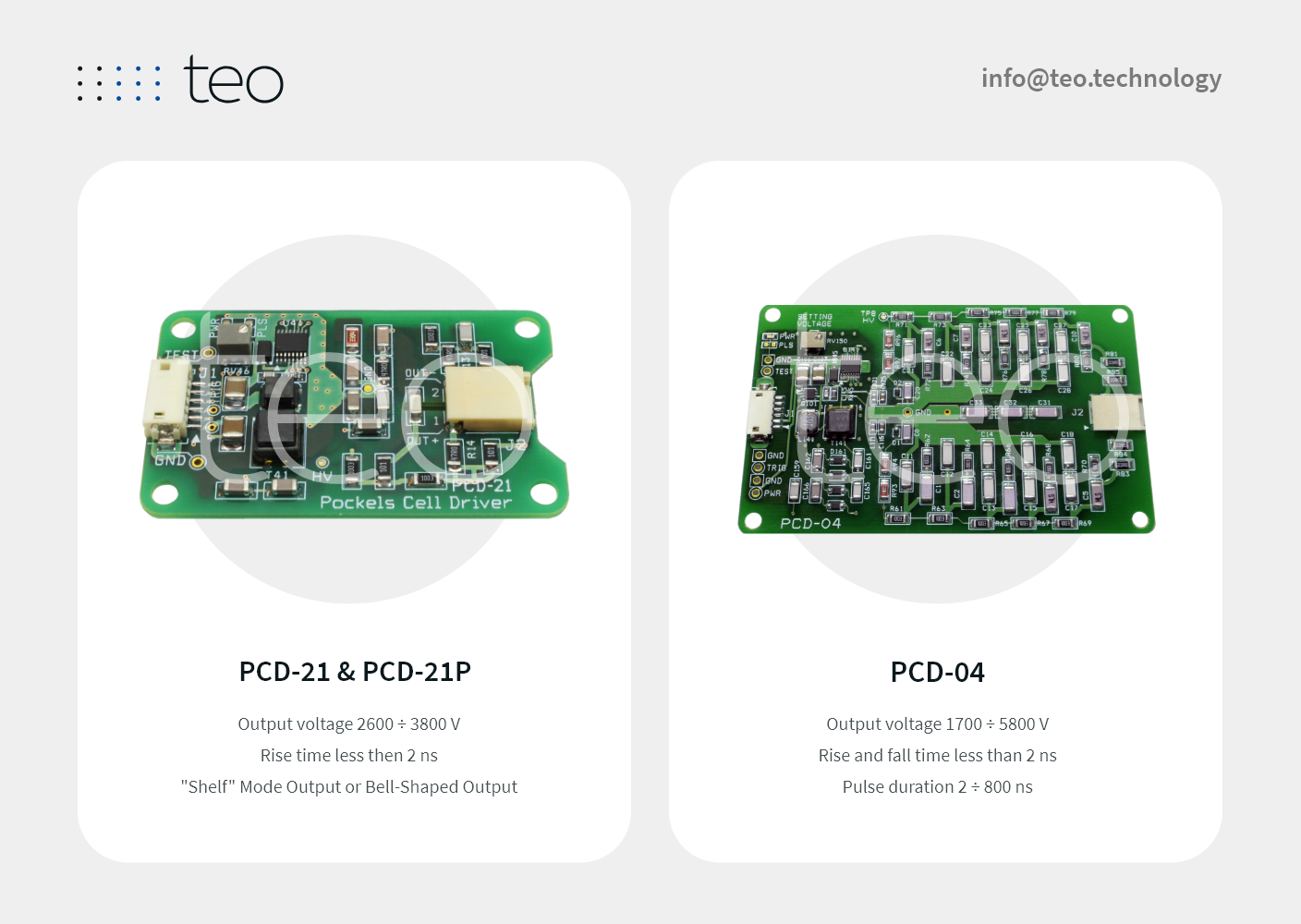

PCD-21
Pockels Cell Driver "PCD-21"
High-voltage trapezoidal pulses with nanosecond rising edge for controlling an electro-optical Q-switch in solid-state lasers.
PCD-21P
Pockels Cell Driver "PCD-21P"
High voltage bell-shaped pulses with nanosecond duration for pulse picking and controlling an electro-optical Q-switch in solid-state lasers.
PCD-41
Pockels Cell Driver "PCD-41"
High voltage quasi-rectangular pulses with nanosecond rising and falling edges. One or two trigger pulses control.
PCD-11
Pockels Cell Driver "PCD-11" with unipolar output
High-voltage trapezoidal unipolar pulses with nanosecond rising edge for controlling an electro-optical Q-switch in solid-state lasers.
PCD-42
Pockels Cell Driver "PCD-42"
High voltage quasi-rectangular pulses with nanosecond rising and falling edges. One or two trigger pulses control.
