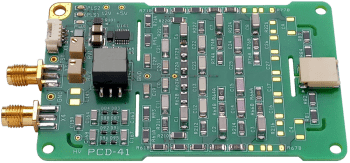

Pockels Cell Driver "PCD-41"
HV rectangular pulse
It is recommended to use the new modification of the driver — PCD-42 — more performance, efficient and functional.
Generation of high voltage quasi-rectangular pulses with nanosecond rising and falling edges. HV output duration is determined by trigger pulse duration. Driver can be used for ultrafast optical beam modulation and deflection, control of laser regenerative amplifiers and pulse pickers.
PCD-41 — HV pulse duration is determined by duration of one external trigger pulse.
PCD-41T — HV pulse duration is determined by delay between rises of two external trigger pulses.
PCD-41P — HV pulse duration (2 ÷ 10 ns) is controlled by the built-in potentiometer.
Make an order
Generation of high voltage quasi-rectangular pulses with nanosecond rising and falling edges. HV output duration is determined by trigger pulse duration. Driver can be used for ultrafast optical beam modulation and deflection, control of laser regenerative amplifiers and pulse pickers.
PCD-41 — HV pulse duration is determined by duration of one external trigger pulse.
PCD-41T — HV pulse duration is determined by delay between rises of two external trigger pulses.
PCD-41P — HV pulse duration (2 ÷ 10 ns) is controlled by the built-in potentiometer.
Features
- Quasi-rectangular high voltage pulse
- Nanosecond rise and fall times
- Controlled pulse duration
- Pulse jitter is less than 200 ps
- Built-in pulsed high voltage source
- Additional output signal for HV pulse amplitude measurement
- Pulse amplitude adjustment by trimmer or external analog signal
- Low voltage power supply (12 or 24 V)
- Compact design and light weight
Specifications
Output voltage amplitude:
PCD-41-4800
3600 ÷ 4800 V
PCD-41-3800
2600 ÷ 3800 V
PCD-41-2800
1800 ÷ 2800 V
PCD-41-2000
1300 ÷ 2000 V
Unevenness of the amplitude on the plateau
< 5 %
Output voltage pulse-to-pulse instability
< 1 %
Max pulsed current
20 A
Optimal load capacitance
4 ÷ 10 pF
HV pulse rise time
2 ± 1 ns
HV pulse fall time
2 ± 1 ns
HV pulse duration
2 ÷ 600 ns
Max HV pulse repetition rate
1000 Hz
Trigger voltage (input impedance is 50 Ω)
5 ± 0.5 V
Output pulse delay vs. trigger pulse
16 ± 3 ns
HV pulse jitter
< 0.2 ns
External power supply voltage
10 ÷ 36 VDC
External power supply current
500 mA
Operating temperature range
–40 ÷ +60 °C
Dimensions
80 × 50 × 15 mm
Mounting hole pattern (Ø 3.2 mm)
74 × 44 mm
Weight (OEM version)
100 g
