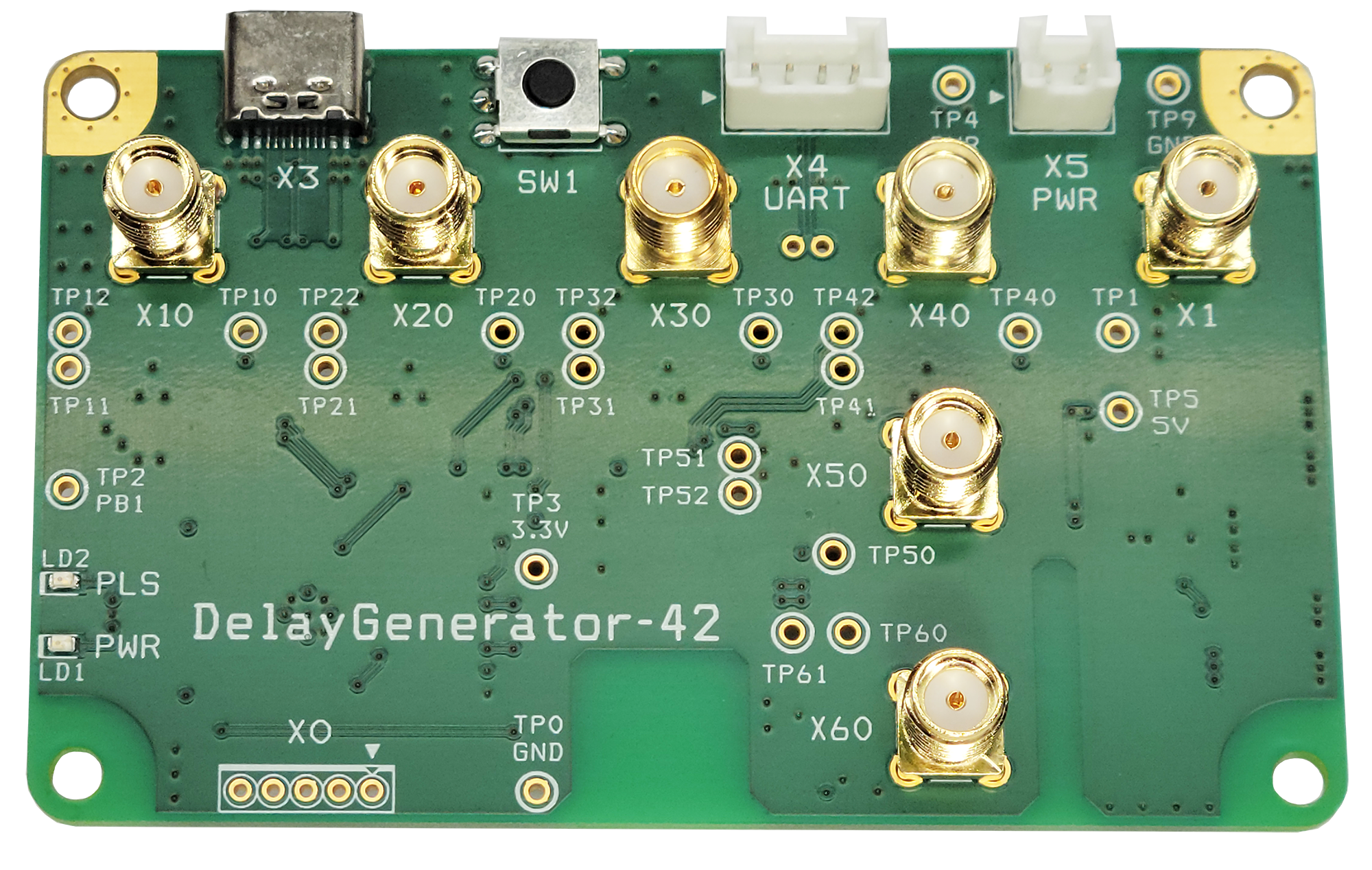

6 Independent Channels low-voltage pulse generator DG-42 is designed for control of external devices by means of trigger pulses with adjustable durations and delays with 200 ps time resolution.
* Independently adjustable pulses
* Time resolution of 200 ps
* Pulse duration starting from 1 ns
Delay Generator – 42 Digital 6-channel pulse & delay generator
Pockels Cell Driver "PCD-21P" HV bell-like pulse
Pockels Cell Driver "PCD-04" HV rectangular pulse
Pockels Cell Driver "PCD-41" HV rectangular pulse
Pockels Cell Driver "PCD-21" HV trapezoidal pulse
DG-42
PCD-21P
PCD-04
PCD-41
PCD-21
Delay Generator – 42
Pockels Cell Driver
with Bell-Shaped Output Pockels Cell Driver
with quasi-rectangular HV pulse Pockels Cell Driver
with rectangular HV pulse Pockels Cell Driver
with "Shelf" Mode Output
with Bell-Shaped Output Pockels Cell Driver
with quasi-rectangular HV pulse Pockels Cell Driver
with rectangular HV pulse Pockels Cell Driver
with "Shelf" Mode Output
Digital low voltage 6-channel pulse & delay generator
Provides high-voltage bell-like pulses with nanosecond duration for pulse picking and controlling an electro-optical Q-switch in solid-state lasers.
- Output voltage 2400 ÷ 3600 V
- Pulse duration 2 ÷ 4 ns
- Rise time less then 2 ns
Provides high voltage quasi-rectangular pulses with nanosecond rising and falling edges.
- Output voltage 1700 ÷ 5800 V
- Rise and fall time less than 2 ns
- Pulse duration 2 ÷ 800 ns

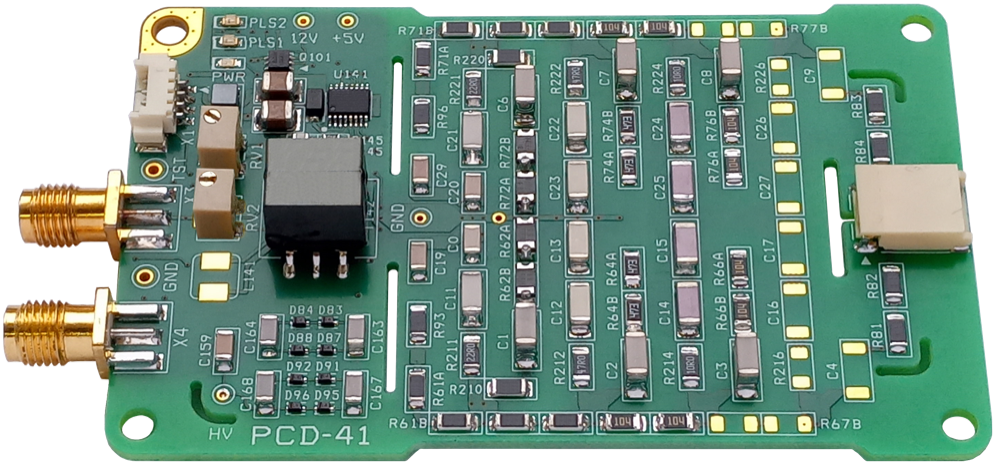

Generation of high voltage quasi-rectangular pulses with nanosecond rising and falling edges.
- Output voltage 1300 ÷ 4800 V
- Nanosecond rise and fall times
- 3 driver modifications for controlling the output pulse duration using the input trigger pulses

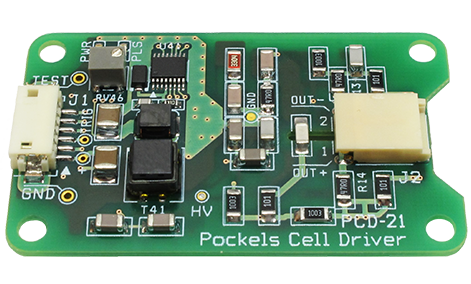

Provides high voltage trapezoidal pulses output with nanosecond rising edge for controlling an electro-optical Q-switch in solid state lasers.
- "Shelf" mode output (pulse duration up to 1 μs)
- Output voltage 2600 ÷ 3800 V
- Rise time less then 2 ns
