Digital 6-channel pulse & delay generator

Quantity
1
$750
2
$670
5
$600
10
$560

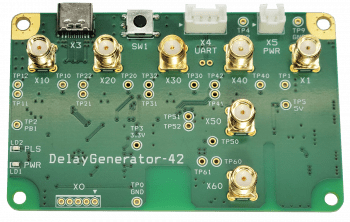

6 independent channels low-voltage pulse generator DG-42 is designed for control of external devices, with adjustable durations and delays with 200 ps time resolution.
Make an order

Features

  • 6 output channels
  • Independently adjustable pulses with resolution of 200 ps
  • Pulse duration starting from 1 ns with rising/falling edges of 0.8 ns
  • Powerful output pulses (5 V at 50 Ω impedance)
  • UART or USB interfaces
  • External or internal triggering
  • Software control with saving parameters

Specifications

Number of output channels
6
Output pulse voltage (at 50 Ω load)
5 ÷ 5.5 V
Output impedance
2.5 Ω
Duration of rise and fall
0.8 ns
Adjustable pulse duration Pulse1 ÷ Pulse5
1 ns ÷ 1 s
Adjustable pulse duration Pulse6
20 ns ÷ 1 s
Adjustable delay Delay1 ÷ Delay6
0 ns ÷ 1 s
Time resolution
200 ps
Channel to channel jitter
0.5 ns
Pulse duration jitter
0.5 ns
Pulse repetition rate
to 100 kHz*
Triggering mode
external / internal
Internal triggering mode
on / off / gate
External triggering mode
on rise / on fall
External trigger input voltage (impedance of 50 Ω)
3 ÷ 5 V
External trigger input duration
≥ 6 ns
Minimal delay relative to external trigger input (insertion delay)
67 ÷ 73 ns
Delay jitter relative to external trigger
6 ns
Supply voltage & current
5 V & 200 mA
Dimensions W×L×H
50×80×16 mm
