FTIR-Shutter Driver "PQSD-3MS"

FTIR-Shutter Driver "PQSD-3MS"



Quantity
1
$670
2
$600
5
$535
10
$500

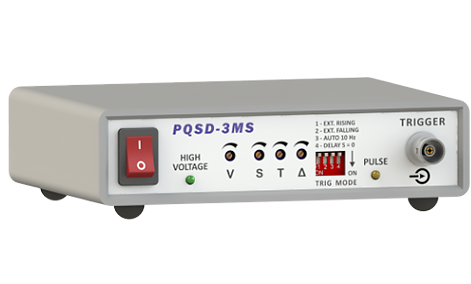

PQSD-3MS provides three synchronized pulses of microsecond duration with magnitude of hundreds of volts. It can be used to control piezo elements of FTIR-shutters for laser Q-switching.
Make an order

Features

  • 3 high voltage pulsed outputs
  • Adjustable pulses amplitude V and width T
  • Adjustable delay between the pulses Δ
  • Adjustable delay S from external trigger
  • 12 V power supply
  • Built-in high-voltage source
  • Compact size

Specifications

Max load capacity per channel С
10 nF
Peak current per channel
4 A
Output voltage amplitude V
90 ÷ 220 V
Pulses width T
1 ÷ 5 μs
Delay between pulses Δ
200 ÷ 800 ns
Leading edge width measured at levels 0.33-0.97 Vmax
≤ 0.2 μs
Falling edge width
≤ 0.2 μs
Max repetition rate
100 Hz
Triggering pulse amplitude
5 V ± 20%
Typical triggering pulse duration
> 10 μs
Min triggering pulse duration
100 ns
Delay to trigger S
50 ÷ 1050 μs
External power voltage
12 V
Max load power
5 W
Operating temperature range
–40 ÷ +60 °C
Dimensions
140 × 110 × 35 mm3
